12V Dc SPDT Relay || Cube Relay 12V DC ( 5 Nos)
₹ 65 / Piece
₹ 125
48%
Minimum Order Quantity is 1 pcs
Maximum Order Quantity is 100 pcs
Highlights
Relay:-
The primary purpose of a relay is to protect the electrical system from too high of a voltage or current, allowing the safe operation of any equipment it connects to. They're commonly found in a variety of applications, from commercial and industrial uses to home and consumer products.
12V SPDT Relay Specifications:
Trigger Voltage (Voltage across coil) : 12V DC
Trigger Current (Nominal current) : 100mA
Maximum AC load current: 7A @ 250/125V AC
Maximum DC load current: 10A @ 30/28V DC
Maximum switching: 300 operating/minute (mechanically)
Product Description
SRD- 05VDC SRD- 12VDC SRD- 24VDC Relay
To use this relay module first you have to decide whether you want to connect or disconnect your load when relay is operated. Connect the load across Common and NC terminal if you want to disconnect the load when relay is operated or across Common and NO terminal if you want to connect the load when relay is operated. As the coil trigger voltage is 5V, you can connect it to any GPIO pin of 5V operating Arduino like UNO or MEGA or you can use any battery above 5V to operate the relay too.
Applications:
Mainly used in switching circuits.
Home Automation projects to switch AC loads
In Controlling Heavy loads at a pre-determined time/condition
Safety circuits to disconnect the load from supply in event of failure
Used in Automobiles electronics for controlling indicators, glass motors etc.

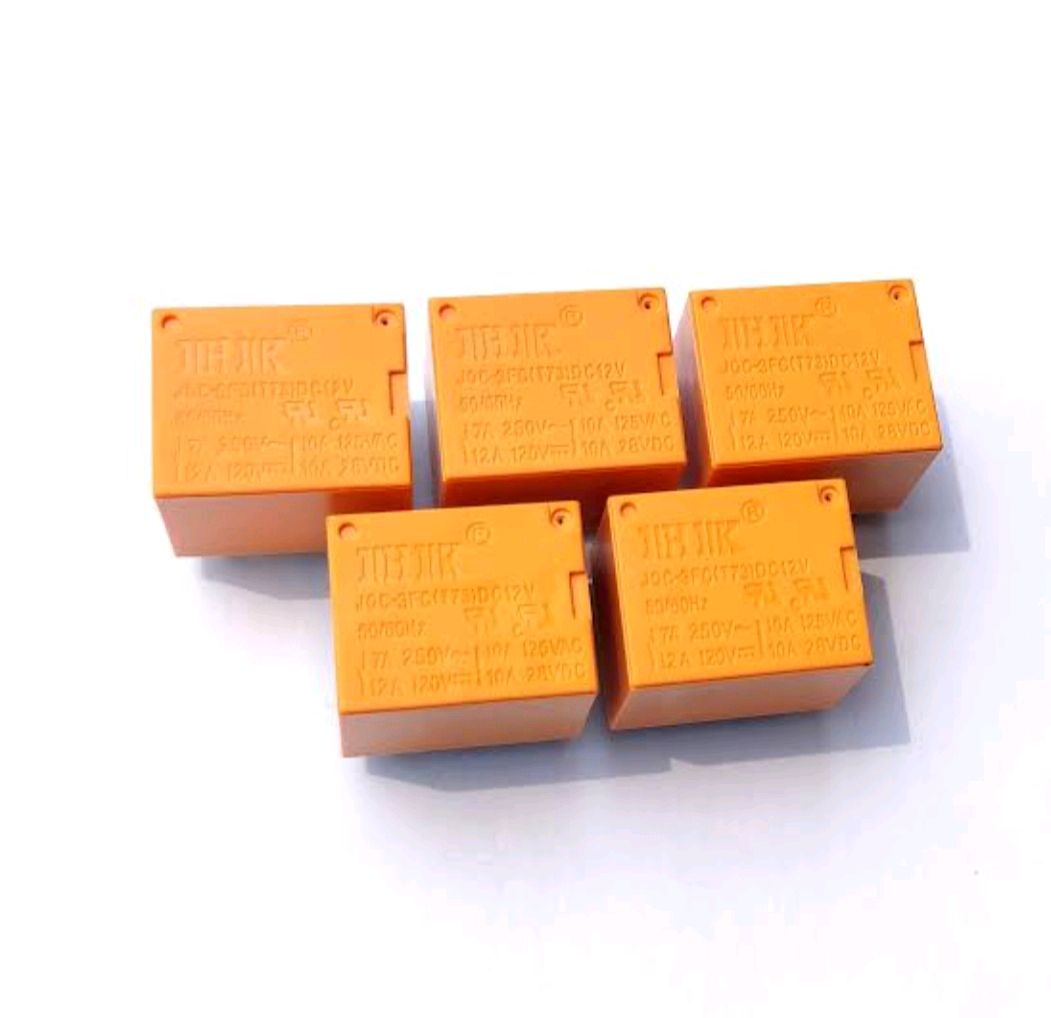

Note: Appearance might be difference from the picture shown.
Package Contents
5× 12V SPDT Relay
