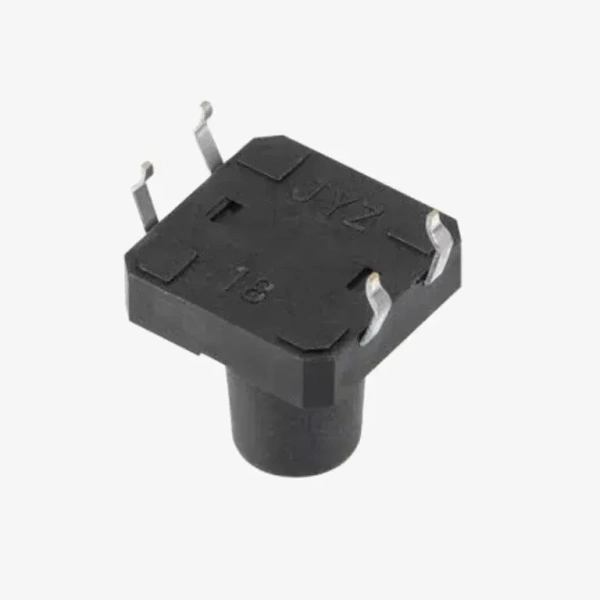

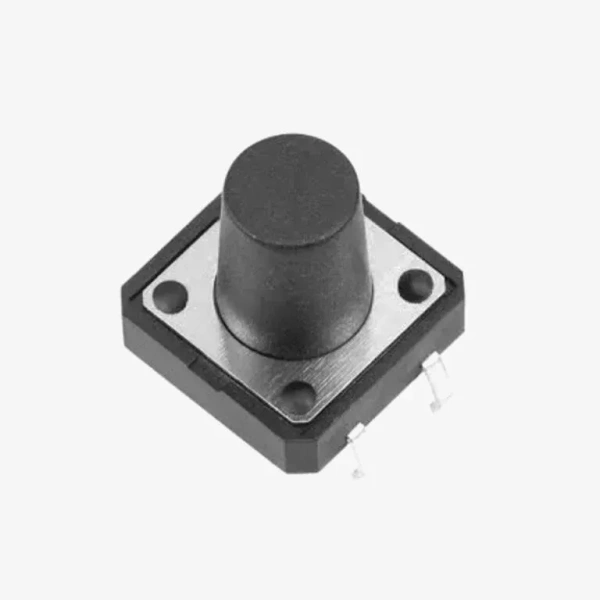

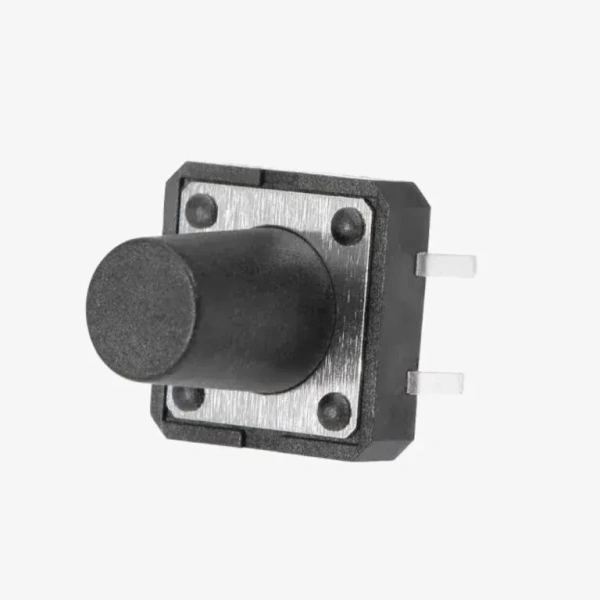

12X12X12MM 4 Pin Square Shape Tactile Push Button Switch
₹ 3 / Piece
₹ 6
50%
Highlights
The Square Shape Tactile Push Button Switch is a versatile and essential component for electronic projects, providing a reliable and standard input mechanism. This switch is designed for PCB mounting but can also be used on a solderless breadboard for temporary connections during prototyping. When pressed, the switch momentarily closes the circuit, offering dependable dome contact technology and strong tactile feedback. This makes it suitable for a wide range of applications, including telecommunications, consumer electronics, audio/visual equipment, medical devices, testing/instrumentation, and computer peripherals. Note that the switch does not come with a cap, which can be sourced separately if needed.
Features & Specifications:
- 🔌 Type: Momentary Push Button, SPST (Single Pole Single Throw)
- ⚙️ Function: Push to ON
- 🛠️ Mounting Type: Through-Hole for Secure PCB Mounting
- 🔩 Contact Material: Aluminum Alloy
- 🏗️ Body Material: Plastic
- 📏 Operating Force: Approximately 3-5N
- 📐 Operation Stroke: 1.05mm
- 🔧 Durability: Mechanical and Electrical Life of 300,000 Cycles
Electrical Specifications:
- ⚡ Operating Voltage: 12V DC
- 🔌 Operating Current: 50mA
- 🔍 Contact Resistance: 50mΩ
- 🛡️ Insulation Resistance: 100MΩ
Environmental Specifications:
- 🌡️ Operating Temperature Range: -20°C to +70°C
Mechanical Specifications:

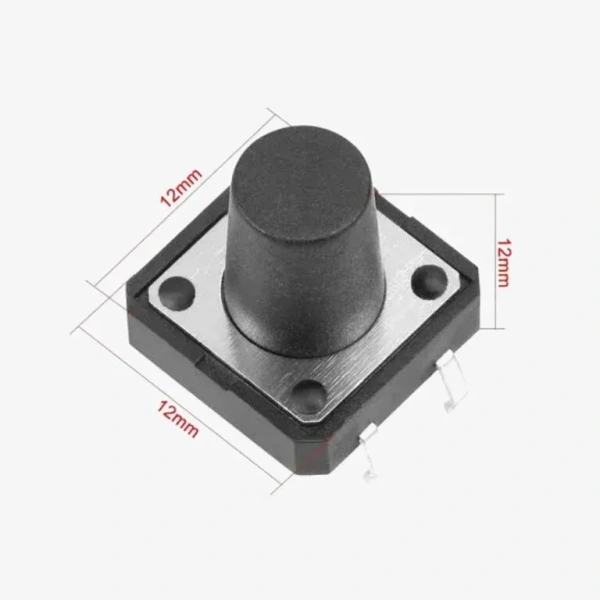

- 📏 Dimensions: 12mm x 12mm x 12mm (Length x Width x Height)
Applications:
- 📞 Telecommunications: Ideal for Use in Communication Devices
- 📱 Consumer Electronics: Widely Used in Various Electronic Gadgets
- 🎬 Audio/Visual Equipment: Suitable for Control Buttons in AV Devices
- 🏥 Medical Devices: Reliable for Use in Medical Instrumentation
- 🧪 Testing/Instrumentation: Essential for Test Equipment and Instruments
- 💻 Computer/Peripherals: Perfect for Input Buttons in Computer-Related Devices
Package Includes:
- 📦 1x Square Shape Tactile Push Button Switch
