Digital Voltmeter (0-100V) and Ammeter (10A) Dual LED Voltage Current Measurement Module

Precision Measurements:

This digital panel offers precision with the capability to measure voltage up to 100 VDC and current from 1-50A, ensuring you get the data you need with utmost accuracy. Whether you’re monitoring your motorcycle’s battery, your car’s electrical system, or any other DC voltage monitoring applications, this tool is a perfect fit.

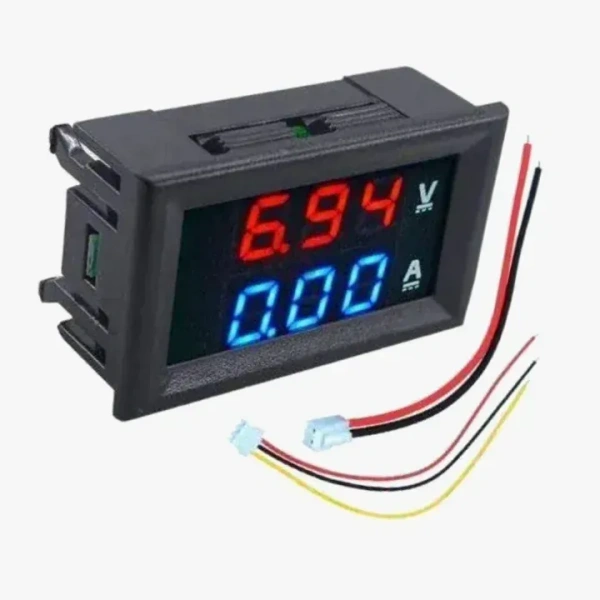

Dual LED Display:

The dual LED display features red for voltage and blue for current, providing you with easy-to-read data even in low-light environments. This makes it suitable for a variety of applications where visibility is crucial, ensuring you have clear readings at all times.

Built-in Calibration Potentiometers:

For those who require precise measurements, this device includes built-in calibration potentiometers for fine-tuning. This allows you to adjust and calibrate the readings according to your specific requirements, ensuring accuracy in every measurement.

Versatile Input Range:

Operating with a versatile input range of 4.5V to 30V DC, this voltmeter ammeter is suitable for various systems and applications. Whether you’re working with low-voltage circuits or higher voltage systems, this module offers the flexibility you need.

Real-Time Monitoring:

This voltmeter ammeter provides quick data updates with a refresh rate of about 500 MS/time, keeping you informed in real-time. This ensures that you can monitor voltage and current fluctuations instantly, allowing for timely adjustments and interventions.

Applications:

• Digital Voltmeter: Used to know the actual voltage of different components in electronic circuits.
• Power Detection: Widely used to check power presence in circuits, such as main outlets.
• Current Measurement: Helps calculate current by knowing the voltage across a circuit.

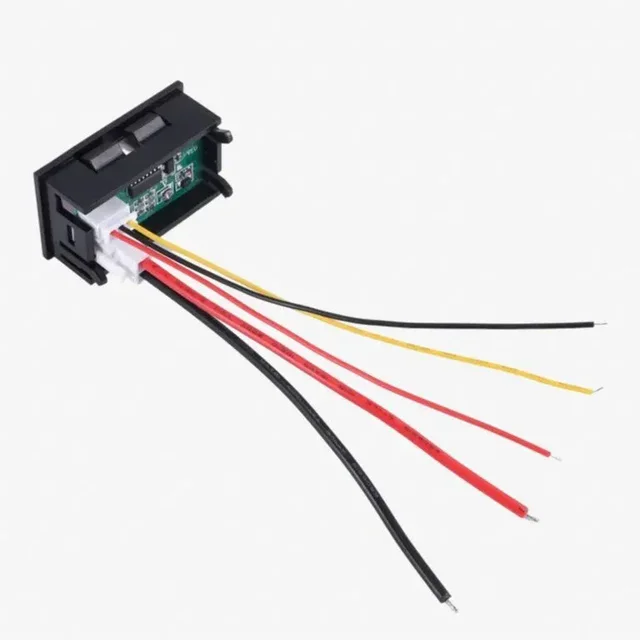

Wiring Instructions:

• Black line (thin): Vacant or buck circuit (module) Negative.
• Red line (thin): Power supply Positive.
• Black line (thick): COM, common measuring.
• Red line (thick): PW+, measuring terminal voltage input positive.
• Yellow line (thick): IN+, current input Positive.

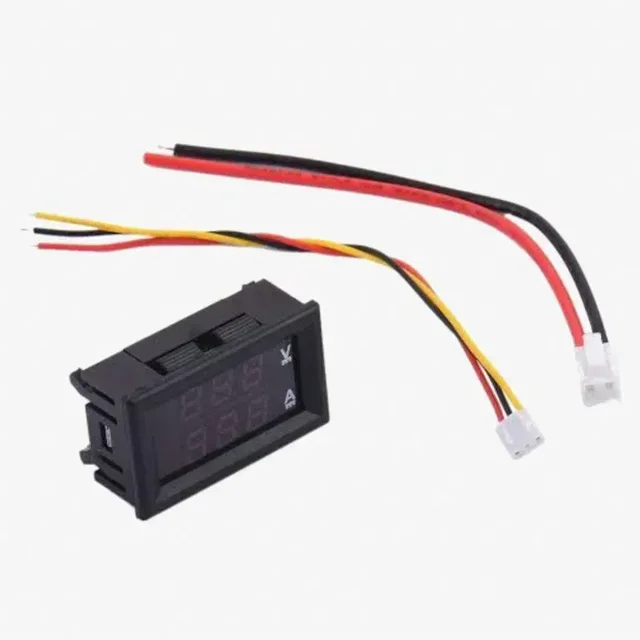

Package Includes:

• 1 x Digital Voltmeter Ammeter Module
