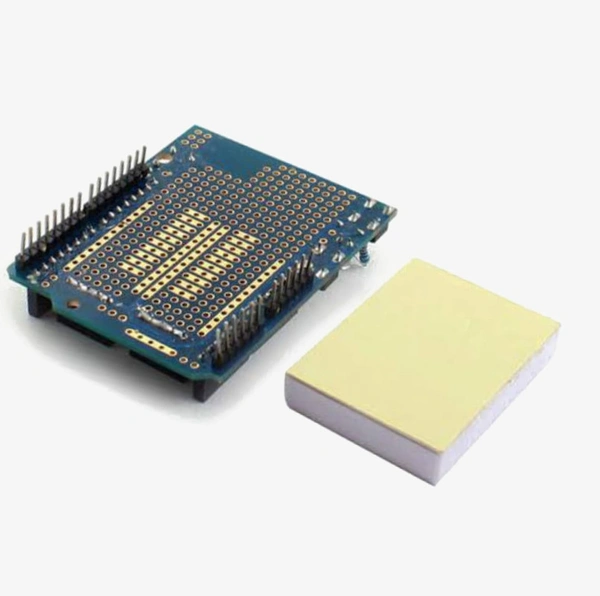

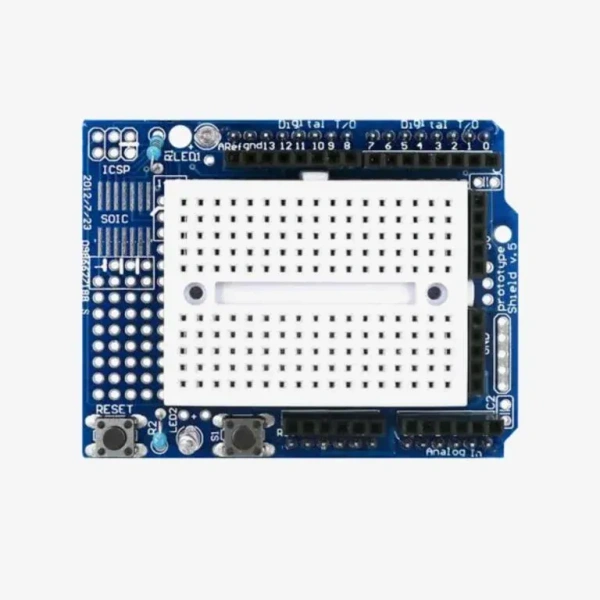

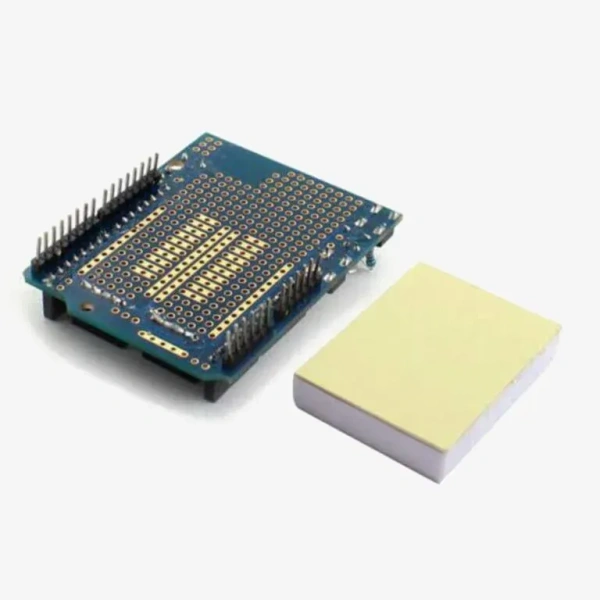

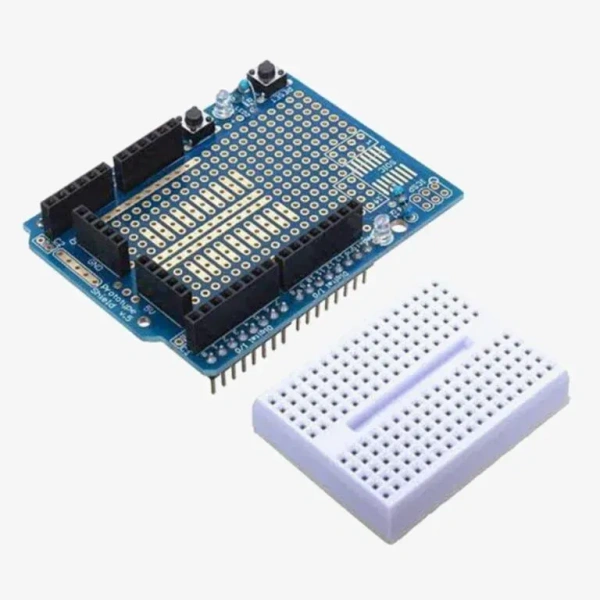

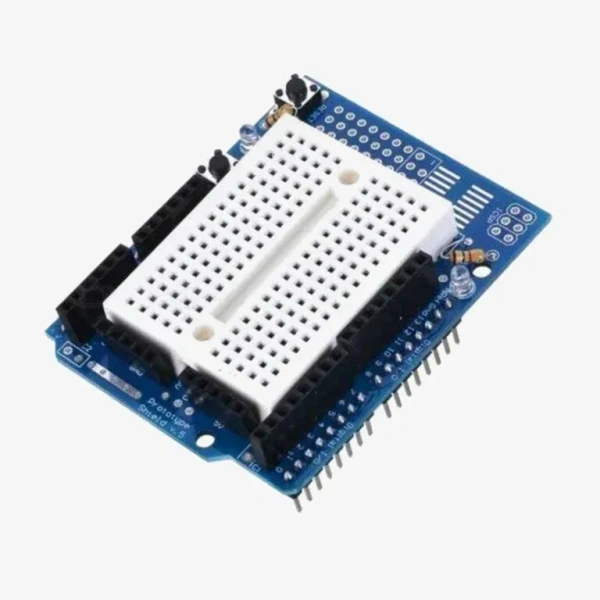

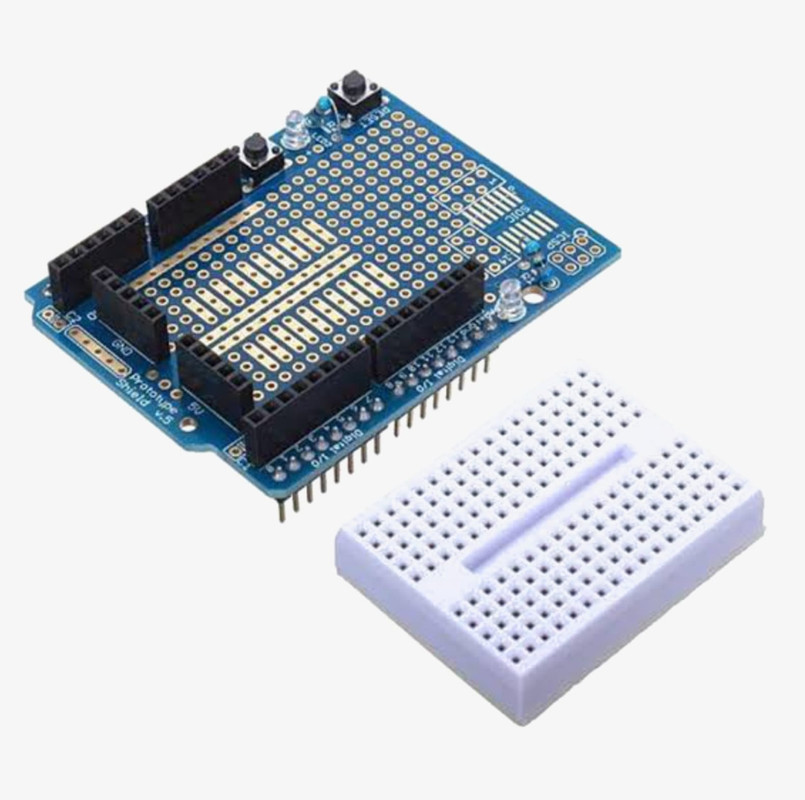

Proto Shield (Prototype) for Arduino Uno Mini Breadboard
₹ 84 / Piece
₹ 180
53%
Highlights
Proto Shield (Prototype) for Arduino Uno Mini Breadboard
Take your Arduino projects to the next level with the Proto Shield for Arduino Uno! This versatile shield is the ultimate tool for prototyping, combining a compact mini breadboard with a spacious prototyping area directly on your Arduino or compatible board.
Whether you’re building custom circuits, experimenting with ICs, or creating multi-layer projects, this Proto Shield provides everything you need for efficient development.
Key Features:
- Integrated Prototyping Grid: Standard 0.1″x0.1″ grid layout with spacious pads for easy soldering.
- Dual Header Options: Includes stacking headers and plain headers for flexible soldering and stacking options.
- IC Pattern Support: Compatible with DIP ICs up to 20 pins, perfect for microcontrollers and chips.
- Convenient Power Rails: Middle and side power rails for streamlined power distribution.
- Built-In Buttons: Reset button and an extra general-purpose button for enhanced usability.
- LED Indicators: Two 3mm LEDs (red and green) with resistors for quick visual feedback.
- ICSP Stacking Header: Pass-thru ICSP header allows stacking additional shields or using an AVR programmer.
- Surface-Mount Compatibility: Area for surface-mount chips up to 14 SOIC size parts.
- Gold-Plated Pads: Ensures reliable connections and extended durability.
- Enhanced Power Stability: Includes 0.1uF capacitors for smooth operation.
Specifications:
| Specification | Details |
|---|---|
| Prototyping Grid | Standard 0.1″x0.1″ grid with large pads |
| Header Options | Comes with stacking headers and plain headers |
| IC Pattern | Supports DIP ICs up to 20 pins |
| Power Rails | Middle and side power rails for easy distribution |
| Buttons | Reset button and extra general-use button |
| LED Indicators | Two 3mm general-use LEDs (red and green) with matching resistors |
| ICSP Header | Pass-thru ICSP stacking header for shields or AVR programmers |
| Surface-Mount Area | Supports up to 14 SOIC size components |
| Compatibility | Works with Arduino Uno, Mega, Leonardo, NG, Diecimila, and Duemilanove |
Why Choose the Proto Shield?
The Proto Shield is an all-in-one prototyping solution for hobbyists, students, and professionals alike. Its user-friendly design, wide compatibility, and robust features make it a must-have for anyone looking to expand their Arduino projects.
Package Includes:
- 1 x Proto Shield for Arduino Uno
- 1 x Mini Breadboard
