Round Rocker Switch – 2-Pin ON/OFF | No Lamp | Durable & Versatile

Whatsapp
Facebook

₹11 / Piece

₹22

50%


Highlights

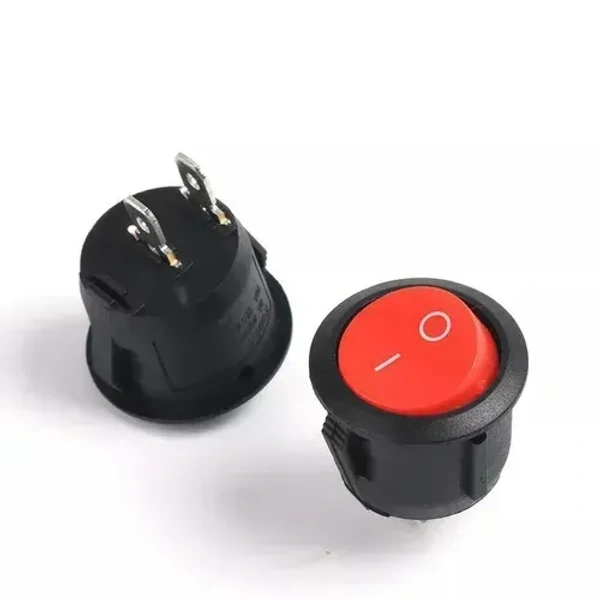

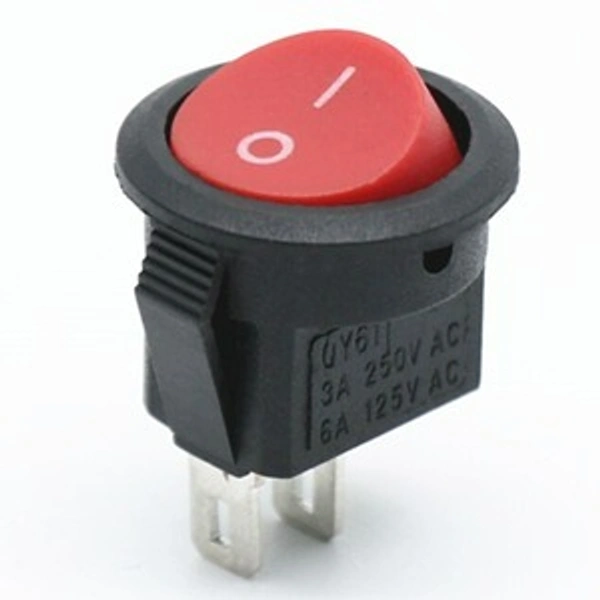

Black Round Rocker Switch – 2-Pin ON/OFF | No Lamp | Durable & Versatile

The KCD1-5-101 is a compact and durable 2P ON-OFF round rocker switch designed without an indicator lamp. Built with high-grade Nylon 66 housing and silver-plated brass terminals, it delivers reliable performance across a wide range of electrical and DIY applications. With CE, CQC, and SGS certifications, this switch is ideal for both OEM and ODM use.


Secure paymentsOrder trackingWhatsApp support

🔧 KEY FEATURES

• ⚡ 2-Pin ON-OFF Operation
 – Simple Single Throw control for basic power switching

• 🏠 Durable Nylon 66 Housing
 – Flame-retardant and rugged for long-term use

• 🔩 Silver-Plated Brass Terminals
 – Ensures optimal conductivity and corrosion resistance

• 🌡️ Wide Operating Temperature
 – Performs from -25°C to +85°C

• 🎨 Multiple Color Options
 – Housing: Black, White, Grey
 – Button: Black, White, Grey, Red, Transparent

• ✅ Certified for Quality
 – CE, CQC, and SGS approved

📐 SPECIFICATIONS

• Model: KCD1-5-101
• Operation: ON-OFF (SPST)
• Pins: 2
• Current/Voltage Rating: 10A @ 125VAC / 6A @ 250VAC
• Contact Resistance: ≤ 35 mΩ
• Insulation Resistance: ≥ 100 mΩ (500VDC)
• Dielectric Strength: 1500VAC (1 min)
• Electrical Life: ≥ 10,000 cycles
• Mechanical Life: ≥ 100,000 cycles
• Material: Nylon 66 (Housing), Brass (Terminals)
• Operating Temp: -25°C to +85°C
• Color Options:
  – Housing: Black
  – Button: Black, White
• Lamp: None
• OEM/ODM: Supported

💡 BENEFITS

• 🛠 Perfect for various home and industrial control applications
• 🔌 Ideal for panel mounting and compact electronic builds
• 💪 Designed for high durability and long-lasting performance
• 🌍 OEM/ODM compatibility for customized applications

📦 PACKAGE INCLUDES

• 1 × KCD1-5-101 Round Rocker Switch (2-Pin, ON-OFF, No Lamp)
