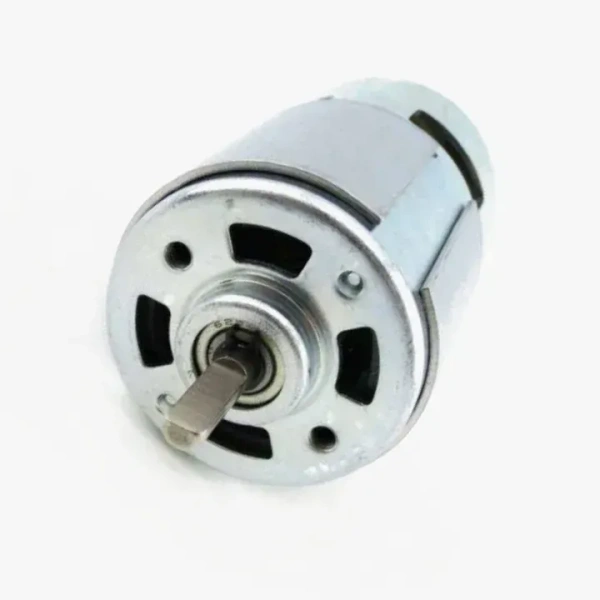

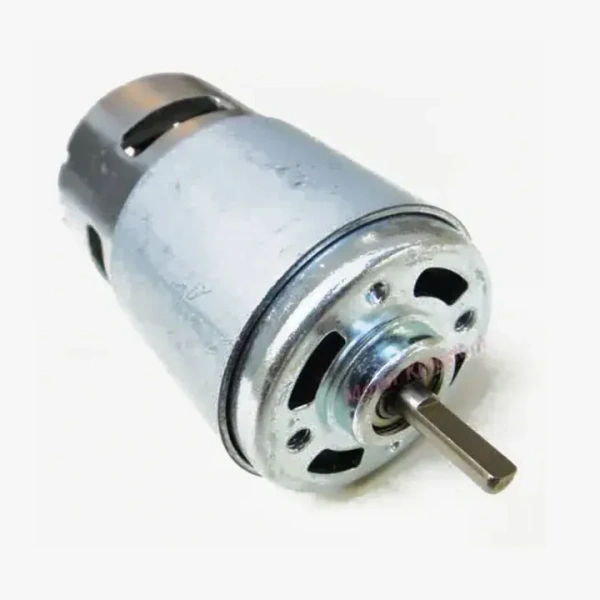

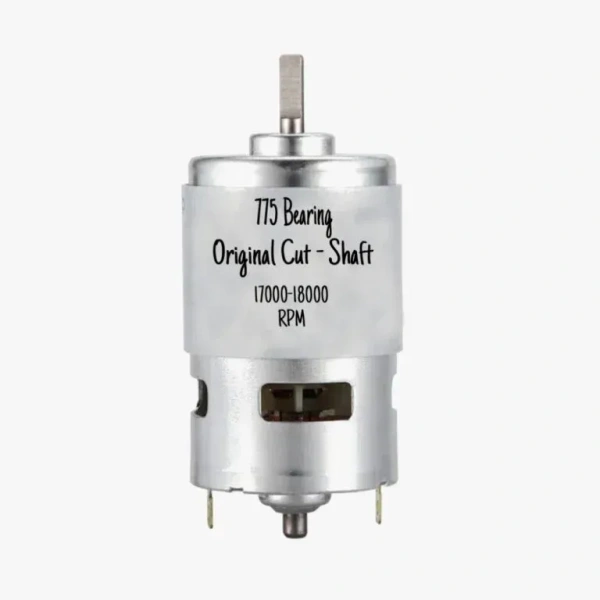

RS-775 DC Motor With Ball Bearing D-Shaft For DIY Projects

Product Highlights

Optimal Performance:

• Operating Voltage: 12V for optimal performance and longevity.
• No-load Current: Just 0.6A for energy-efficient operation.
• Maximum Current: 2A, ensuring robust power for your projects.

Blazing Speeds:

• No Load Speed @12V: A rapid ~5000/6000 RPM.
• No Load Speed @24V: A lightning-fast ~11000/12000 RPM (for short bursts of extra power).

Perfect Fit:

• Mounting Made Easy: 4 mm screw holes with a 33 mm distance for secure attachment.
• Compact Dimensions: 41 mm diameter and 67 mm body length for versatile application.
• Precision Shaft: 5 mm diameter with a length of ~16-20 mm, perfect for various fittings.

Sleek Design:

• Main Color: Sleek Silver Tone, blending aesthetics with functionality.

Key Specifications

• Operating Voltage: 12V (recommended)
• No-load Current: 0.6A
• Maximum Current: 2A
• No Load Speed:
  • @12V: ~5000/6000 RPM
  • @24V: ~11000/12000 RPM (not recommended for prolonged use)
• Mounting:
  • Screw Hole Diameter: ~4 mm
  • Distance between Screw Holes: ~33 mm
• Dimensions:
  • Motor Diameter: 41 mm
  • Motor Length: 67 mm
  • Shaft Length: ~16-20 mm
  • Shaft Diameter: 5 mm
• Color: Silver Tone

Uses and Applications

Robotics:

• Power your robots with reliable drive motors.
• Actuate arms or other moving parts with precision.

Model Vehicles:

• Bring RC cars, boats, and small drones to life.
• Create motorized model kits with ease.

Home Automation:

• Automate curtains, blinds, and small conveyor systems effortlessly.

Tools and Gadgets:

• Build your own power tools like drills or rotary tools.
• Craft electric screwdrivers for handy fixes.

Hobby Projects:

• Construct wind generators or small-scale wind turbines.
• Design custom fans or blowers for unique applications.

Package Includes

• 1 x RS-775 DC Motor With Ball Bearing D-Shaft For DIY Projects
