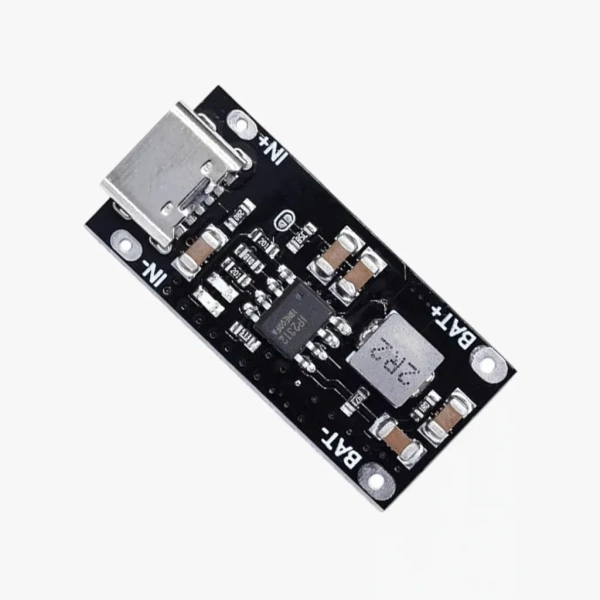

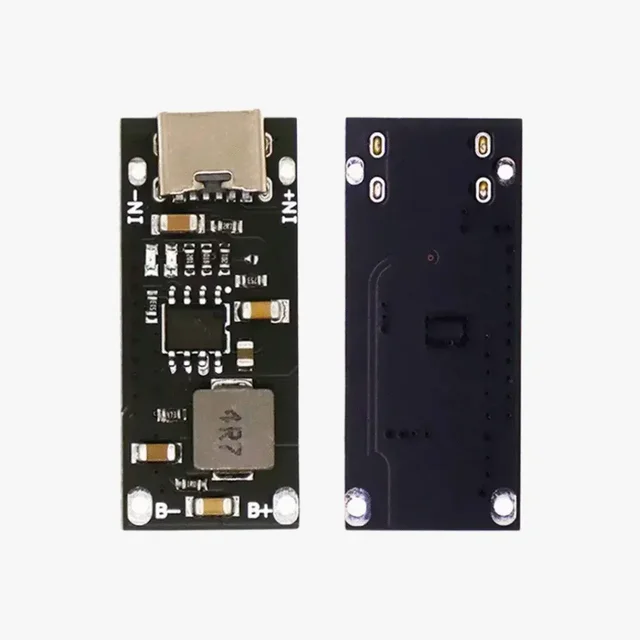

Type-C 3A Lithium Battery Charging Board – IP2312 | Fast Charge CC/CV Module
₹ 89 / Piece
₹ 180
51%
Highlights
Power up your projects with precision using the Type-C 3A Quick Charging Board featuring the IP2312 main control chip. Designed for safe, efficient, and high-speed charging of polymer ternary lithium batteries, this compact module supports full CC/CV mode, intelligent voltage detection, and dual charge cut-off options — ideal for DIY electronics, battery-powered builds, and embedded systems.
⚠️ Note: Not compatible with 3.2V lithium iron phosphate batteries.
🔧 KEY FEATURES
• ⚡ Fast Charging at 3A – High current output for quick battery replenishment
• 🔄 CC/CV Mode – Smart constant current/constant voltage charging process
• 🧠 Intelligent Detection – Automatically adjusts charging state based on battery level
• 🔁 4-Min Auto Monitoring – Continues or halts charging based on real-time voltage check
• 🔌 Type-C Input – Modern USB interface for wide compatibility
• 💡 LED Indicators – Red for charging, blue for fully charged
📐 SPECIFICATIONS
• 🔧 Main Chip: IP2312
• 🔋 Charging Mode: Full CC (Constant Current) / CV (Constant Voltage)
• 🔌 Input Voltage: 4.5V – 5.5V
• 🔄 Default Charging Current: 3A
• 🔚 Cut-off Voltage Options: 4.2V or 4.35V
• 🧲 Input Connector: Type-C USB
• 📏 Dimensions: 34.5mm x 15mm
• 💡 Indicators:
– Red: Charging
– Blue: Fully Charged
💡 BENEFITS
• 🔧 Reliable Performance – Intelligent chip-controlled charging ensures battery longevity

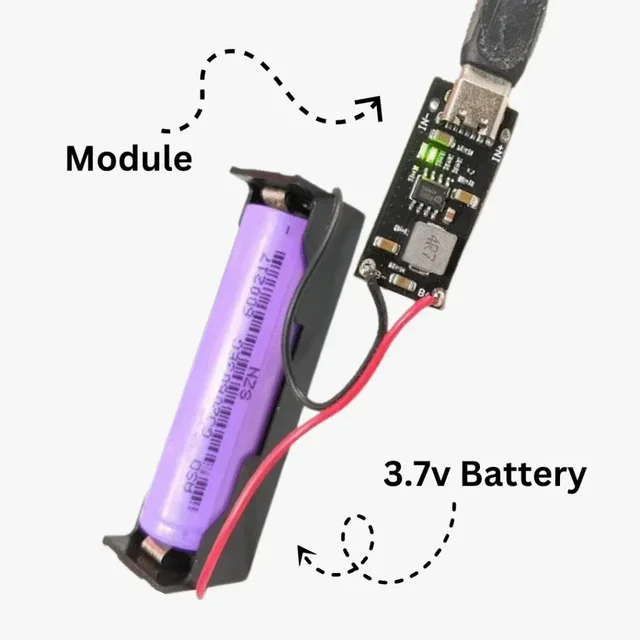

• 🧩 Versatile Use – Perfect for battery packs, DIY electronics, and embedded systems
• 💼 Compact Size – Easily fits into small enclosures and mobile devices
• 🔌 Modern Interface – Type-C input for universal and reversible connectivity
• 🧠 Auto Recharge Feature – Resumes charging if battery voltage drops below 4.1V
📦 PACKAGE INCLUDES
• 1 × Type-C USB Input 3A Lithium Battery Charging Board (IP2312 Chip, CC/CV Mode, 5V to 4.2V)
